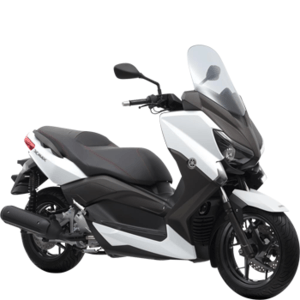

YAMAHA YP 250 R X-MAX /ABS
SG26

YAMAHA YP 250 R X-MAX /ABS
Year of manufacture:
2014 to 2016
VIN:
-
Save in "My bike"
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Specifications*:

Engine size:

249

Cylinders:

1

hp/kW:

20/15

Vehicle weight (kg):

180

Seat height (mm):

785

Valve clearance (intake):

KALT 0,08-0,12 MM

Valve clearance (exhaust):

KALT 0,16-0,20 MM

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

1,9 (2,1) BAR

Tyre pressure (rear):

2,2 (2,5) BAR

Spark plug 1:

NGK DPR8EA-9

Electrode gap:

0,8-0,9 MM

Fork tube diam.:

TELEGABEL

Chain/Final drive:

KEILRIEMEN AUTOM.

Capacities*:

Fork oil per rod:

128 ML SAE 10W

Engine oil w/o filter:

10W-40,20W-40/50

Engine oil with filter:

1,3 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

13,2 LITER

Coolant:

CA. 1,2 LITER

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
