Spare parts and accessories for YAMAHA TZR 125

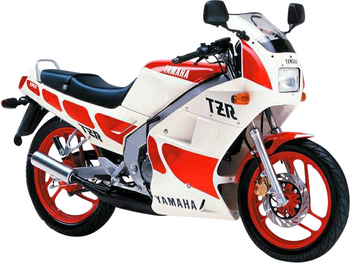

YAMAHA TZR 125

1997 - 1999

Specifications*

Engine size:
125
Cylinders:
1
hp/kW:
15/11
Vehicle weight (kg):
132
Valve clearance (intake):
2-TAKTER
Valve clearance (exhaust):
2-TAKTER
Engine idle speed:
1250 - 1450 U/MIN
Carburettor air screw:
1,5 AUSDREHUNGEN
Tyre pressure (front):
1,75 BAR
Tyre pressure (rear):
2,0 (2,25) BAR
Spark plug 1:
NGK BR9ECM
Electrode gap:
0,8 MM
Fork tube diam.:
39 MM UPSIDE-DOWN
Front/rear sprockets:
18/47 ODER 16/46
Chain/Final drive:
132 ODER 140
Specifications*
Engine size:
125
Cylinders:
1
hp/kW:
15/11
Vehicle weight (kg):
132
Valve clearance (intake):
2-TAKTER
Valve clearance (exhaust):
2-TAKTER
Engine idle speed:
1250 - 1450 U/MIN
Carburettor air screw:
1,5 AUSDREHUNGEN
Tyre pressure (front):
1,75 BAR
Tyre pressure (rear):
2,0 (2,25) BAR
Spark plug 1:
NGK BR9ECM
Electrode gap:
0,8 MM
Fork tube diam.:
39 MM UPSIDE-DOWN
Front/rear sprockets:
18/47 ODER 16/46
Chain/Final drive:
132 ODER 140

Capacities*

Fork oil per rod:
372 ML SAE 5W
Engine oil w/o filter:
1,7 L ÖLTANK GES.
Engine oil with filter:
2-TAKTÖL
Brake fluid:
DOT 4
Final drive oil:
750 ML SAE 10W-30
Fuel:
15 LITER
Coolant:
900 ML
Capacities*
Fork oil per rod:
372 ML SAE 5W
Engine oil w/o filter:
1,7 L ÖLTANK GES.
Engine oil with filter:
2-TAKTÖL
Brake fluid:
DOT 4
Final drive oil:
750 ML SAE 10W-30
Fuel:
15 LITER
Coolant:
900 ML

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

61 articles
-10%
4.8
4.2
2 Variants
4.5
4
3.9
4
5
-20%
4.3
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for YAMAHA TZR 125 (4FL)

Are you planning to maintain and service your own YAMAHA TZR 125 (4FL)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your YAMAHA TZR 125 (4FL). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
