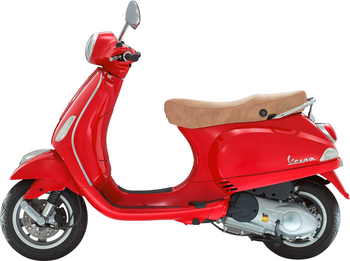

VESPA LX 125 I.E. 3V
LX125-3V

VESPA LX 125 I.E. 3V
Year of manufacture:
2012 to 2014
VIN:
-
Save in "My bike"
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Specifications*:

Engine size:

124

Cylinders:

1

hp/kW:

12/8.5

Vehicle weight (kg):

125

Seat height (mm):

785

Valve clearance (intake):

0,08 MM KALT

Valve clearance (exhaust):

0,08 MM KALT

Engine idle speed:

1750 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG 28 MM

Tyre pressure (front):

1,6 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK CR8EB

Spark plug 2:

NGK CR8EIX

Electrode gap:

0,7 MM - 0,8 MM

Capacities*:

Engine oil w/o filter:

SAE 5W-40 VOLLSYNT

Engine oil with filter:

CA. 1,2 LITER

Brake fluid:

DOT 4

Final drive oil:

SAE 80W-90

Fuel:

8,3 LITER

Coolant:

LUFTGEKÜHLT

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.
