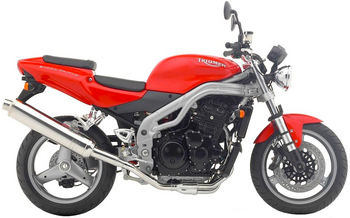

Spare parts and accessories for TRIUMPH SPEED TRIPLE 595N

AUSF. 566 -

2002 - 2004

Specifications*

Engine size:

955

Cylinders:

hp/kW:

120/88, 98/72

Vehicle weight (kg):

210

Seat height (mm):

815

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1200 ± 50 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,5 BAR

Tyre pressure (rear):

2,9 BAR

Spark plug 1:

NGK CR9EK

Spark plug 2:

NGK CR9EIX

Electrode gap:

0,6 MM

Fork tube diam.:

45 MM TELEGABEL

Front/rear sprockets:

18/42 ZÄHNE

Chain/Final drive:

106 GLIEDER

Specifications*

Engine size:

955

Cylinders:

hp/kW:

120/88, 98/72

Vehicle weight (kg):

210

Seat height (mm):

815

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1200 ± 50 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,5 BAR

Tyre pressure (rear):

2,9 BAR

Spark plug 1:

NGK CR9EK

Spark plug 2:

NGK CR9EIX

Electrode gap:

0,6 MM

Fork tube diam.:

45 MM TELEGABEL

Front/rear sprockets:

18/42 ZÄHNE

Chain/Final drive:

106 GLIEDER

Capacities*

Fork oil per rod:

586ML 10W TROCKEN

Engine oil w/o filter:

SAE 10W-40/15W-50

Engine oil with filter:

3,2 L MIN. API SH

Brake fluid:

DOT 4

Fuel:

21,0 LITER

Coolant:

2,8 LITER

Capacities*

Fork oil per rod:

586ML 10W TROCKEN

Engine oil w/o filter:

SAE 10W-40/15W-50

Engine oil with filter:

3,2 L MIN. API SH

Brake fluid:

DOT 4

Fuel:

21,0 LITER

Coolant:

2,8 LITER
