Spare parts and accessories for TGB X-MOTION 125 IE XMOTION125

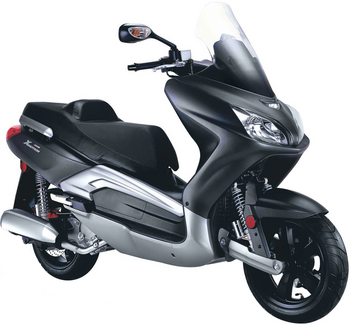

TGB X-MOTION 125 IE

-

Specifications*

Engine size:
125
Cylinders:
1
hp/kW:
12/9
Vehicle weight (kg):
166
Valve clearance (intake):
KALT 0,12±0,02 MM
Valve clearance (exhaust):
KALT 0,12±0,02 MM
Engine idle speed:
1600 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG
Tyre pressure (front):
1,9 BAR
Tyre pressure (rear):
2,2 BAR
Spark plug 1:
NGK CR8E
Electrode gap:
0,6-0,7 MM
Chain/Final drive:
CVT AUTOMATIK
Specifications*
Engine size:
125
Cylinders:
1
hp/kW:
12/9
Vehicle weight (kg):
166
Valve clearance (intake):
KALT 0,12±0,02 MM
Valve clearance (exhaust):
KALT 0,12±0,02 MM
Engine idle speed:
1600 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG
Tyre pressure (front):
1,9 BAR
Tyre pressure (rear):
2,2 BAR
Spark plug 1:
NGK CR8E
Electrode gap:
0,6-0,7 MM
Chain/Final drive:
CVT AUTOMATIK

Capacities*

Engine oil w/o filter:
800 ML SAE 10W-30
Engine oil with filter:
ÖLSIEB
Brake fluid:
DOT 4
Final drive oil:
100 ML SAE 85W-140
Fuel:
11,0 LITER
Coolant:
1,2 LITER
Capacities*
Engine oil w/o filter:
800 ML SAE 10W-30
Engine oil with filter:
ÖLSIEB
Brake fluid:
DOT 4
Final drive oil:
100 ML SAE 85W-140
Fuel:
11,0 LITER
Coolant:
1,2 LITER

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

18 articles
-6%
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for TGB X-MOTION 125 IE (XMOTION125)

Are you planning to maintain and service your own TGB X-MOTION 125 IE (XMOTION125)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your TGB X-MOTION 125 IE (XMOTION125). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
