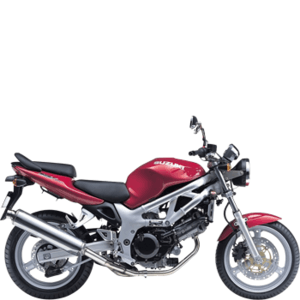

Spare parts and accessories for SUZUKI SV 650 AV

JS1AV133100100001 - JS1AV223100100001

1999 - 2002

Specifications*

Engine size:

645

Cylinders:

hp/kW:

70/52, 34/25

Vehicle weight (kg):

185

Seat height (mm):

805

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1300 ± 100 U/MIN

Carburettor air screw:

2,5-3,5 AUSDREH.

Tyre pressure (front):

2,25 BAR

Tyre pressure (rear):

2,5 BAR

Spark plug 1:

NGK CR8E

Spark plug 2:

NGK CR8EIX

Electrode gap:

0,7-0,8 MM

Fork tube diam.:

41 MM TELEGABEL

Front/rear sprockets:

15/45 ZÄHNE

Chain/Final drive:

110 GLIEDER

Specifications*

Engine size:

645

Cylinders:

hp/kW:

70/52, 34/25

Vehicle weight (kg):

185

Seat height (mm):

805

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1300 ± 100 U/MIN

Carburettor air screw:

2,5-3,5 AUSDREH.

Tyre pressure (front):

2,25 BAR

Tyre pressure (rear):

2,5 BAR

Spark plug 1:

NGK CR8E

Spark plug 2:

NGK CR8EIX

Electrode gap:

0,7-0,8 MM

Fork tube diam.:

41 MM TELEGABEL

Front/rear sprockets:

15/45 ZÄHNE

Chain/Final drive:

110 GLIEDER

Capacities*

Fork oil per rod:

489 ML SAE 5W-20

Engine oil w/o filter:

2,3 L SAE 10W-40

Engine oil with filter:

2,4 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

16,0 LITER

Coolant:

1,6 LITER

Capacities*

Fork oil per rod:

489 ML SAE 5W-20

Engine oil w/o filter:

2,3 L SAE 10W-40

Engine oil with filter:

2,4 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

16,0 LITER

Coolant:

1,6 LITER

Test reports and information

MOTORRADFAHRER 5/2/99

MOTORRAD 2,5,10,17,24/99

MOTORRAD NEWS 2/99

MOTORRAD 3,22/00 2,26/02

MOTORRAD 1,16,22/01

MO 6/99 2/01

Find used value:

DAT GmbH

Test reports and information*

MOTORRADFAHRER 5/2/99

MOTORRAD 2,5,10,17,24/99

MOTORRAD NEWS 2/99

MOTORRAD 3,22/00 2,26/02

MOTORRAD 1,16,22/01

MO 6/99 2/01

Find used value:

DAT GmbH

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

221 articles

Alternator Regulator

€114.95¹

Delo

Microfleece battery

€79.99¹

Delo

Lithium-Ion Batteries

€129.99¹

saito

AGM battery,

€49.99¹

All Balls Racing

Wheel Bearing Set

€13.99¹

KOYO

Steering Head Bearing

€29.99¹

Tourmax

Steering Head Bearing

€35.99¹

Brembo

Brake-Discs Fixed with ABE

€109.99¹

-20%

Brembo

Brake-Discs Floating Disc

€249.99¹ €199.99¹

TRW

Brake Discs, Rear

€89.95¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for SUZUKI SV 650 (AV)

Are you planning to maintain and service your own SUZUKI SV 650 (AV)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your SUZUKI SV 650 (AV). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
