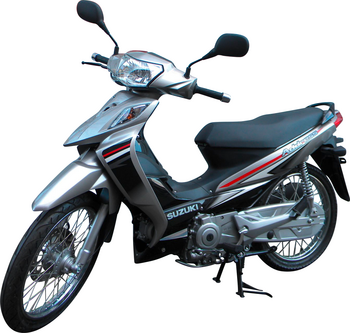

Spare parts and accessories for SUZUKI FL 125 ADDRESS WVCM

MLCCMM111100200001- -

2007 - 2009

Specifications*

Engine size:

124

Cylinders:

hp/kW:

9.5/7

Vehicle weight (kg):

109

Seat height (mm):

770

Valve clearance (intake):

KALT 0,03-0,08 MM

Valve clearance (exhaust):

KALT 0,08-0,13 MM

Engine idle speed:

1500 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG 24MM

Tyre pressure (front):

1,75 BAR

Tyre pressure (rear):

2,0 (2,8) BAR

Spark plug 1:

NGK CR6HSA

Spark plug 2:

Electrode gap:

0,7MM

Fork tube diam.:

26 MM TELEGABEL

Front/rear sprockets:

14/34 ZÄHNE

Chain/Final drive:

100 GLIEDER

Specifications*

Engine size:

124

Cylinders:

hp/kW:

9.5/7

Vehicle weight (kg):

109

Seat height (mm):

770

Valve clearance (intake):

KALT 0,03-0,08 MM

Valve clearance (exhaust):

KALT 0,08-0,13 MM

Engine idle speed:

1500 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG 24MM

Tyre pressure (front):

1,75 BAR

Tyre pressure (rear):

2,0 (2,8) BAR

Spark plug 1:

NGK CR6HSA

Spark plug 2:

Electrode gap:

0,7MM

Fork tube diam.:

26 MM TELEGABEL

Front/rear sprockets:

14/34 ZÄHNE

Chain/Final drive:

100 GLIEDER

Capacities*

Fork oil per rod:

51 ML SAE 10W

Engine oil w/o filter:

800 ML SAE 10W-40

Engine oil with filter:

900 ML MIN. API SF

Brake fluid:

DOT 4

Fuel:

4,3 LITER

Coolant:

LUFTGEKÜHLT

Capacities*

Fork oil per rod:

51 ML SAE 10W

Engine oil w/o filter:

800 ML SAE 10W-40

Engine oil with filter:

900 ML MIN. API SF

Brake fluid:

DOT 4

Fuel:

4,3 LITER

Coolant:

LUFTGEKÜHLT

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

45 articles

4.3

Delo

Microfleece battery

€49.99¹

4.4

Delo

Gel batteries, FA / sealed

€59.99¹

4.2

Delo

Lithium-Ion Batteries

€69.99¹

4.2

saito

AGM battery

€14.99¹

TRW

Brake-Pads Organic

€14.99¹

4.3

NGK

Spark Plug

€6.99¹

4.4

NGK

Iridium Spark Plug

€18.99¹

2 Variants

4.5

Castrol

Brake fluid

from €9.99¹

(1 Liter = €19.98¹)

-25%

2 Variants

Motul

Brake Fluid

€7.99¹ from €5.99¹

(1 Liter = €11.98¹)

4.2

PROCYCLE

Brake Fluid

€9.99¹

(1 Liter = €9.99¹)

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for SUZUKI FL 125 ADDRESS (WVCM)

Are you planning to maintain and service your own SUZUKI FL 125 ADDRESS (WVCM)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your SUZUKI FL 125 ADDRESS (WVCM). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
