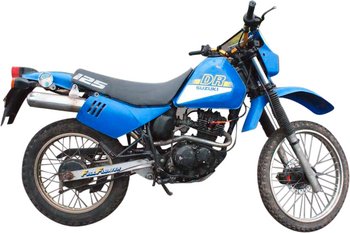

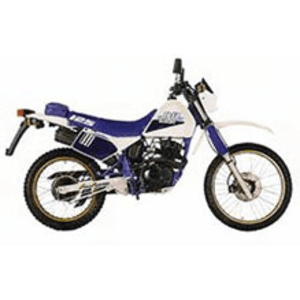

SUZUKI DR 125 S
SF43B

SUZUKI DR 125 S
Year of manufacture:
1991 to 1993
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

124

Cylinders:

1

hp/kW:

12/9

Vehicle weight (kg):

127

Seat height (mm):

800

Valve clearance (intake):

KALT 0,08-0,13 MM

Valve clearance (exhaust):

KALT 0,08-0,13 MM

Engine idle speed:

1450 ± 50 U/MIN

Carburettor air screw:

0,6 AUSDREHUNGEN

Tyre pressure (front):

1,5 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK DR8ES-L

Spark plug 2:

NGK DR8EIX

Electrode gap:

0,7 MM

Fork tube diam.:

35 MM TELEGABEL

Front/rear sprockets:

16/53 ZÄHNE

Chain/Final drive:

134 GLIEDER

Capacities*:

Fork oil per rod:

316 ML SAE 10W

Engine oil w/o filter:

850 ML SAE 10W-40

Engine oil with filter:

950 ML SAE 10W-40

Brake fluid:

DOT 4

Fuel:

13,0 LITER

Coolant:

LUFTGEKÜHLT

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
