Spare parts and accessories for SUZUKI AN 650 BURGMAN

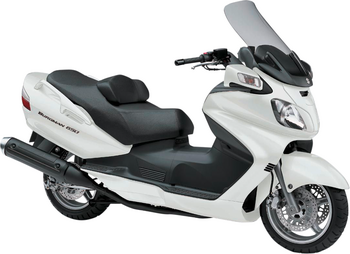

SUZUKI AN 650 BURGMAN

2002 - 2003

Specifications*

Engine size:
638
Cylinders:
2
hp/kW:
55/41
Vehicle weight (kg):
270
Seat height (mm):
750
Valve clearance (intake):
0,10-0,20MM (KALT)
Valve clearance (exhaust):
0,20-0,30MM (KALT)
Engine idle speed:
1200 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG 32MM
Tyre pressure (front):
2,25 BAR
Tyre pressure (rear):
2,5 (2,8) BAR
Spark plug 1:
NGK CR8E
Spark plug 2:
NGK CR8EIX
Electrode gap:
0,7 MM
Fork tube diam.:
41 MM TELEGABEL
Chain/Final drive:
CVT AUTOMATIK
Specifications*
Engine size:
638
Cylinders:
2
hp/kW:
55/41
Vehicle weight (kg):
270
Seat height (mm):
750
Valve clearance (intake):
0,10-0,20MM (KALT)
Valve clearance (exhaust):
0,20-0,30MM (KALT)
Engine idle speed:
1200 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG 32MM
Tyre pressure (front):
2,25 BAR
Tyre pressure (rear):
2,5 (2,8) BAR
Spark plug 1:
NGK CR8E
Spark plug 2:
NGK CR8EIX
Electrode gap:
0,7 MM
Fork tube diam.:
41 MM TELEGABEL
Chain/Final drive:
CVT AUTOMATIK

Capacities*

Fork oil per rod:
482 ML SAE 5W-20
Engine oil w/o filter:
2,6 L SAE 10W-40
Engine oil with filter:
2,9 L MIN. API SF
Brake fluid:
DOT 4
Final drive oil:
300 ML SAE 90 GL-5
Fuel:
15,0 LITER
Coolant:
1,3 LITER
Capacities*
Fork oil per rod:
482 ML SAE 5W-20
Engine oil w/o filter:
2,6 L SAE 10W-40
Engine oil with filter:
2,9 L MIN. API SF
Brake fluid:
DOT 4
Final drive oil:
300 ML SAE 90 GL-5
Fuel:
15,0 LITER
Coolant:
1,3 LITER

Test reports and information

ROLLER 4/05
ROLLER KATALOG 2006
Find used value:
Test reports and information*
ROLLER 4/05
ROLLER KATALOG 2006
Find used value:

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

88 articles
2 Variants
4.6
NEW!
2 Variants
4.5
-25%
4.7
4.2
-10%
4.8
3.9
4.2
2 Variants
4.8
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for SUZUKI AN 650 BURGMAN (WVBU)

Are you planning to maintain and service your own SUZUKI AN 650 BURGMAN (WVBU)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your SUZUKI AN 650 BURGMAN (WVBU). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
