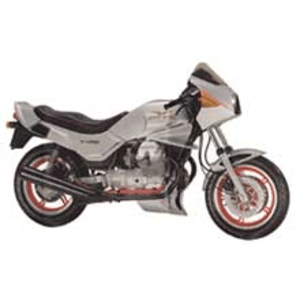

Spare parts and accessories for MOTO GUZZI V35 IMOLA II PC

1984 - 1987

Specifications*

Engine size:

346

Cylinders:

hp/kW:

27/20

Vehicle weight (kg):

168

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,15-0,20 MM

Engine idle speed:

1000-1200 U/MIN

Carburettor air screw:

1,5 AUSDREHUNGEN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,2 (2,4) BAR

Spark plug 1:

NGK C8HSA

Spark plug 2:

NGK CR8HIX

Electrode gap:

0,5 MM

Chain/Final drive:

KARDAN

Specifications*

Engine size:

346

Cylinders:

hp/kW:

27/20

Vehicle weight (kg):

168

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,15-0,20 MM

Engine idle speed:

1000-1200 U/MIN

Carburettor air screw:

1,5 AUSDREHUNGEN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,2 (2,4) BAR

Spark plug 1:

NGK C8HSA

Spark plug 2:

NGK CR8HIX

Electrode gap:

0,5 MM

Chain/Final drive:

KARDAN

Capacities*

Fork oil per rod:

70 ML SAE 15W

Engine oil w/o filter:

SAE 10W-50

Engine oil with filter:

2,0 LITER

Brake fluid:

DOT 4

Final drive oil:

160 ML SAE 90

Coolant:

LUFTGEKÜHLT

Capacities*

Fork oil per rod:

70 ML SAE 15W

Engine oil w/o filter:

SAE 10W-50

Engine oil with filter:

2,0 LITER

Brake fluid:

DOT 4

Final drive oil:

160 ML SAE 90

Coolant:

LUFTGEKÜHLT

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

33 articles

Delo

Gel batteries, FA / sealed

from €119.99¹

Delo

Lithium-Ion Batteries

€249.99¹

-50%

Delo

Standard battery

€99.99¹ €49.99¹

ODYSSEY BATTERY

ODYSSEY Hawker Batteries

from €149.99¹

NEW

KOYO

Steering Head Bearing

€26.99¹

Champion

Oil Filter

€19.99¹

Louis

Aluminium washer set for oil

€1.99¹

Louis

Copper ring set for oil

€1.99¹

-20%

Louis

Megnetic Oil Drain Plug

€4.99¹ €3.99¹

stahlbus

Oil Drain Valve

€36.95¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for MOTO GUZZI V35 IMOLA II (PC)

Are you planning to maintain and service your own MOTO GUZZI V35 IMOLA II (PC)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your MOTO GUZZI V35 IMOLA II (PC). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
