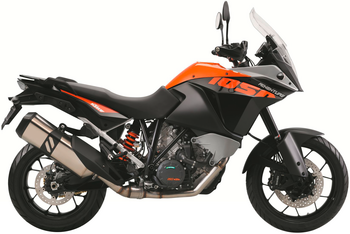

Spare parts and accessories for KTM 1050 ADVENTURE 1050ADV/15

2015 - 2016

Specifications*

Engine size:

1050

Cylinders:

hp/kW:

95/70

Vehicle weight (kg):

230

Seat height (mm):

850

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

1400 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,4 BAR

Tyre pressure (rear):

2,9 BAR

Spark plug 1:

AUßEN LMAR7DI-10

Spark plug 2:

INNEN LKAR9BI-10

Electrode gap:

1,0 MM

Fork tube diam.:

USD-GABEL

Front/rear sprockets:

17/42 ZÄHNE

Chain/Final drive:

5/8 X 5/16" X-RING

Specifications*

Engine size:

1050

Cylinders:

hp/kW:

95/70

Vehicle weight (kg):

230

Seat height (mm):

850

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

1400 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,4 BAR

Tyre pressure (rear):

2,9 BAR

Spark plug 1:

AUßEN LMAR7DI-10

Spark plug 2:

INNEN LKAR9BI-10

Electrode gap:

1,0 MM

Fork tube diam.:

USD-GABEL

Front/rear sprockets:

17/42 ZÄHNE

Chain/Final drive:

5/8 X 5/16" X-RING

Capacities*

Fork oil per rod:

570 ML SAE 4

Engine oil w/o filter:

SAE 10W-50 VOLLSY.

Engine oil with filter:

CA.3,6 L JASO T903

Brake fluid:

DOT 4 / DOT 5.1

Fuel:

23,0 LITER

Coolant:

2,4 LITER

Capacities*

Fork oil per rod:

570 ML SAE 4

Engine oil w/o filter:

SAE 10W-50 VOLLSY.

Engine oil with filter:

CA.3,6 L JASO T903

Brake fluid:

DOT 4 / DOT 5.1

Fuel:

23,0 LITER

Coolant:

2,4 LITER
