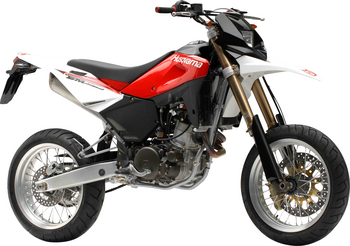

Spare parts and accessories for HUSQVARNA SM 610 I.E. SM610IE

2007 - 2010

Specifications*

Engine size:

576

Cylinders:

hp/kW:

49/36

Vehicle weight (kg):

155

Seat height (mm):

910

Valve clearance (intake):

0,05 MM KALT

Valve clearance (exhaust):

0,05 MM KALT

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

1,8 (2,0) BAR

Tyre pressure (rear):

2,0 (2,2) BAR

Spark plug 1:

NGK CPR8E

Spark plug 2:

Electrode gap:

0,7 MM

Fork tube diam.:

45 MM USD-GABEL

Front/rear sprockets:

15/45 ZÄHNE

Chain/Final drive:

112 GLIEDER

Specifications*

Engine size:

576

Cylinders:

hp/kW:

49/36

Vehicle weight (kg):

155

Seat height (mm):

910

Valve clearance (intake):

0,05 MM KALT

Valve clearance (exhaust):

0,05 MM KALT

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

1,8 (2,0) BAR

Tyre pressure (rear):

2,0 (2,2) BAR

Spark plug 1:

NGK CPR8E

Spark plug 2:

Electrode gap:

0,7 MM

Fork tube diam.:

45 MM USD-GABEL

Front/rear sprockets:

15/45 ZÄHNE

Chain/Final drive:

112 GLIEDER

Capacities*

Fork oil per rod:

SAE 7,5W

Engine oil w/o filter:

1,8 L SAE 10W-60

Engine oil with filter:

2,0 L VOLLSYNTHESE

Brake fluid:

DOT 4

Fuel:

12,5 LITER

Coolant:

1,35 LITER

Capacities*

Fork oil per rod:

SAE 7,5W

Engine oil w/o filter:

1,8 L SAE 10W-60

Engine oil with filter:

2,0 L VOLLSYNTHESE

Brake fluid:

DOT 4

Fuel:

12,5 LITER

Coolant:

1,35 LITER

Test reports and information

DRIFT 4/07

PS 9/09

Find used value:

DAT GmbH

Test reports and information*

DRIFT 4/07

PS 9/09

Find used value:

DAT GmbH

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

37 articles

Delo

Microfleece battery

€79.99¹ €77.97¹

Delo

Gel batteries, FA / sealed

€99.99¹ €97.46¹

Delo

Lithium-Ion Batteries

€129.99¹ €126.71¹

ODYSSEY BATTERY

ODYSSEY Hawker Batteries

€169.99¹ €165.70¹

Brembo

Brake-Pads Sinter With ABE

€29.99¹ €29.23¹

TRW

Brake-Pads Sinter with ABE

€49.95¹ €48.69¹

All Balls Racing

FORK SEAL SET

€29.99¹ €29.23¹

Champion

Oil Filter

€7.99¹ €7.78¹

-24%

Champion

Spark Plug

€9.05¹ €6.81¹

NGK

Spark Plug

€9.99¹ €9.73¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HUSQVARNA SM 610 I.E. (SM610IE)

Are you planning to maintain and service your own HUSQVARNA SM 610 I.E. (SM610IE)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HUSQVARNA SM 610 I.E. (SM610IE). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
