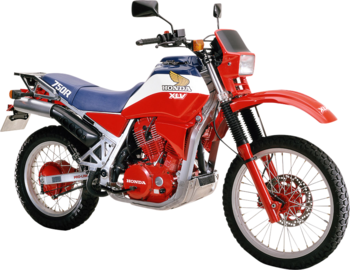

Spare parts and accessories for HONDA XLV 750 R RD01

1983 - 1985

Specifications*

Engine size:

749

Cylinders:

hp/kW:

61/45, 50/37

Vehicle weight (kg):

220

Seat height (mm):

860

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

1000 ± 100 U/MIN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK DPR8EA-9

Spark plug 2:

NGK DPR8EIX-9

Electrode gap:

0,9 MM

Fork tube diam.:

43 MM TELEGABEL

Chain/Final drive:

KARDAN

Specifications*

Engine size:

749

Cylinders:

hp/kW:

61/45, 50/37

Vehicle weight (kg):

220

Seat height (mm):

860

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

1000 ± 100 U/MIN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK DPR8EA-9

Spark plug 2:

NGK DPR8EIX-9

Electrode gap:

0,9 MM

Fork tube diam.:

43 MM TELEGABEL

Chain/Final drive:

KARDAN

Capacities*

Fork oil per rod:

645 ML SAE 7,5W

Engine oil w/o filter:

2,8 L SAE 10W-40

Engine oil with filter:

3,0 LITER

Brake fluid:

DOT 4

Final drive oil:

100 ML SAE 90 GL-5

Fuel:

20,0 LITER

Coolant:

LUFTGEKÜHLT

Capacities*

Fork oil per rod:

645 ML SAE 7,5W

Engine oil w/o filter:

2,8 L SAE 10W-40

Engine oil with filter:

3,0 LITER

Brake fluid:

DOT 4

Final drive oil:

100 ML SAE 90 GL-5

Fuel:

20,0 LITER

Coolant:

LUFTGEKÜHLT
