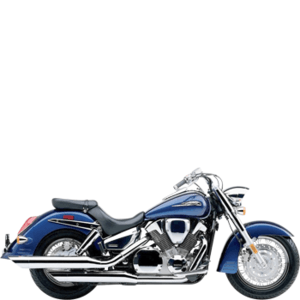

HONDA VTX 1300
SC52

HONDA VTX 1300
Year of manufacture:
2003 to 2007
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

1312

Cylinders:

2

hp/kW:

75/55

Vehicle weight (kg):

324

Seat height (mm):

700

Valve clearance (intake):

KALT 0,15 ± 0,02MM

Valve clearance (exhaust):

KALT 0,30 ± 0,02MM

Engine idle speed:

900 ± 100 U/MIN

Carburettor air screw:

2,75 AUSDREHUNGEN

Tyre pressure (front):

2,25 BAR

Tyre pressure (rear):

2,25 (2,5) BAR

Spark plug 1:

NGK DCPR6E

Spark plug 2:

-

Electrode gap:

0,8 MM

Fork tube diam.:

41 MM USD-GABEL

Chain/Final drive:

KARDAN

Capacities*:

Fork oil per rod:

459 ± 2,5 ML 10W

Engine oil w/o filter:

3,5 L SAE 10W-40

Engine oil with filter:

3,7 L API SE-SG

Brake fluid:

DOT 4

Final drive oil:

120 ML SAE 80 GL-5

Fuel:

18,0 LITER

Coolant:

CA.2,7 LITER

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
