Parts & Specifications: HONDA VT 500 E | Louis Motorcycle & Leisure

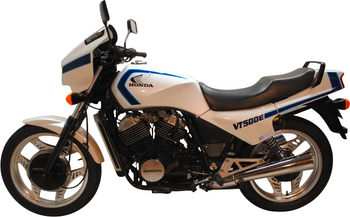

Spare parts and accessories for HONDA VT 500 E

1983 - 1988

Specifications*

Engine size:

491

Cylinders:

hp/kW:

50/37, 27/20

Vehicle weight (kg):

204

Seat height (mm):

770

Valve clearance (intake):

KALT 0,10 MM

Valve clearance (exhaust):

KALT 0,10 MM

Engine idle speed:

1100 ± 100 U/MIN

Carburettor air screw:

2,25 AUSDREHUNGEN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,0 (2,5) BAR

Spark plug 1:

NGK DPR8EA-9

Spark plug 2:

NGK DPR8EIX-9

Electrode gap:

0,9 MM

Fork tube diam.:

37 MM TELEGABEL

Chain/Final drive:

KARDAN

Specifications*

Engine size:

491

Cylinders:

hp/kW:

50/37, 27/20

Vehicle weight (kg):

204

Seat height (mm):

770

Valve clearance (intake):

KALT 0,10 MM

Valve clearance (exhaust):

KALT 0,10 MM

Engine idle speed:

1100 ± 100 U/MIN

Carburettor air screw:

2,25 AUSDREHUNGEN

Tyre pressure (front):

2,0 BAR

Tyre pressure (rear):

2,0 (2,5) BAR

Spark plug 1:

NGK DPR8EA-9

Spark plug 2:

NGK DPR8EIX-9

Electrode gap:

0,9 MM

Fork tube diam.:

37 MM TELEGABEL

Chain/Final drive:

KARDAN

Capacities*

Fork oil per rod:

360 ML SAE 7,5W

Engine oil w/o filter:

2,3 L SAE 10W-40

Engine oil with filter:

2,5 L MIN. API SE

Brake fluid:

DOT 4

Final drive oil:

120 ML SAE 90 GL-5

Fuel:

18,0 LITER

Coolant:

2,0 LITER

Capacities*

Fork oil per rod:

360 ML SAE 7,5W

Engine oil w/o filter:

2,3 L SAE 10W-40

Engine oil with filter:

2,5 L MIN. API SE

Brake fluid:

DOT 4

Final drive oil:

120 ML SAE 90 GL-5

Fuel:

18,0 LITER

Coolant:

2,0 LITER
