Spare parts and accessories for HONDA TRX-650 RINCON

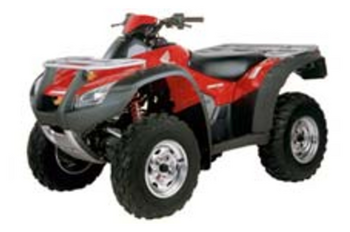

HONDA TRX-650 RINCON

2004 -

Specifications*

Engine size:
649
Cylinders:
1
hp/kW:
31/23
Vehicle weight (kg):
275
Seat height (mm):
700
Valve clearance (intake):
KALT 0,15 MM
Valve clearance (exhaust):
KALT 0,33 MM
Engine idle speed:
1400 ± 100 U/MIN
Tyre pressure (front):
0,26-0,34 BAR
Tyre pressure (rear):
0,22-0,28 BAR
Spark plug 1:
NGK IFR5L-11
Electrode gap:
1,1 MM
Chain/Final drive:
KARDAN
Specifications*
Engine size:
649
Cylinders:
1
hp/kW:
31/23
Vehicle weight (kg):
275
Seat height (mm):
700
Valve clearance (intake):
KALT 0,15 MM
Valve clearance (exhaust):
KALT 0,33 MM
Engine idle speed:
1400 ± 100 U/MIN
Tyre pressure (front):
0,26-0,34 BAR
Tyre pressure (rear):
0,22-0,28 BAR
Spark plug 1:
NGK IFR5L-11
Electrode gap:
1,1 MM
Chain/Final drive:
KARDAN

Capacities*

Engine oil w/o filter:
SAE 10W-40
Engine oil with filter:
2,9 L MIN. API SG
Gear oil:
175 ML SAE 80 GL-5
Brake fluid:
DOT 4
Final drive oil:
78 ML SAE 80 GL-5
Fuel:
17,0 LITER
Coolant:
2,5 LITER
Capacities*
Engine oil w/o filter:
SAE 10W-40
Engine oil with filter:
2,9 L MIN. API SG
Gear oil:
175 ML SAE 80 GL-5
Brake fluid:
DOT 4
Final drive oil:
78 ML SAE 80 GL-5
Fuel:
17,0 LITER
Coolant:
2,5 LITER

Test reports and information

QUADMAGAZIN 6/04
QUADWELT 6/05
Find used value:
Test reports and information*
QUADMAGAZIN 6/04
QUADWELT 6/05
Find used value:

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

30 articles
2 Variants
4.5
4.2
3.9
2 Variants
5
2 Variants
4.6
4.7
2 Variants
5
2 Variants
4.8
2 Variants
4.3
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HONDA TRX-650 RINCON (TRX-650)

Are you planning to maintain and service your own HONDA TRX-650 RINCON (TRX-650)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HONDA TRX-650 RINCON (TRX-650). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
