Spare parts and accessories for HONDA PCX 125

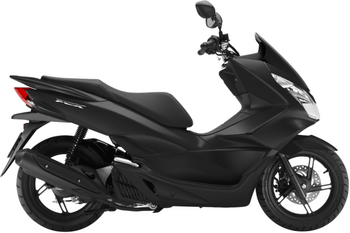

HONDA PCX 125

2015 - 2017

Specifications*

Engine size:
125
Cylinders:
1
hp/kW:
11/8.6
Vehicle weight (kg):
130
Seat height (mm):
761
Valve clearance (intake):
KALT 0,08-0,12 MM
Valve clearance (exhaust):
KALT 0,22-0,26 MM
Engine idle speed:
1700 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG
Tyre pressure (front):
2,0 BAR
Tyre pressure (rear):
2,3 (2,5) BAR
Spark plug 1:
NGK CPR7EA-9
Electrode gap:
0,8-0,9 MM
Fork tube diam.:
31 MM TELEGABEL
Chain/Final drive:
RIEMENANTRIEB
Specifications*
Engine size:
125
Cylinders:
1
hp/kW:
11/8.6
Vehicle weight (kg):
130
Seat height (mm):
761
Valve clearance (intake):
KALT 0,08-0,12 MM
Valve clearance (exhaust):
KALT 0,22-0,26 MM
Engine idle speed:
1700 ± 100 U/MIN
Carburettor air screw:
EINSPRITZUNG
Tyre pressure (front):
2,0 BAR
Tyre pressure (rear):
2,3 (2,5) BAR
Spark plug 1:
NGK CPR7EA-9
Electrode gap:
0,8-0,9 MM
Fork tube diam.:
31 MM TELEGABEL
Chain/Final drive:
RIEMENANTRIEB

Capacities*

Fork oil per rod:
122 ML SAE 10W
Engine oil w/o filter:
SAE 10W-30
Engine oil with filter:
900 ML MIN. API SG
Brake fluid:
DOT 4
Final drive oil:
120 ML SAE 10W-30
Fuel:
8,0 LITER
Coolant:
600 ML
Capacities*
Fork oil per rod:
122 ML SAE 10W
Engine oil w/o filter:
SAE 10W-30
Engine oil with filter:
900 ML MIN. API SG
Brake fluid:
DOT 4
Final drive oil:
120 ML SAE 10W-30
Fuel:
8,0 LITER
Coolant:
600 ML

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

42 articles
4.2
4.2
4.9
-33%
4.4
3.9
-10%
4.8
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HONDA PCX 125 (JF57)

Are you planning to maintain and service your own HONDA PCX 125 (JF57)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HONDA PCX 125 (JF57). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
