Spare parts and accessories for HONDA NSR 125 R

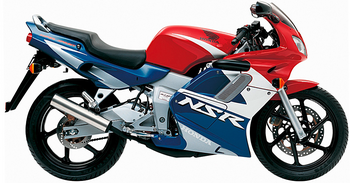

HONDA NSR 125 R

1994 - 1997

Specifications*

Engine size:
125
Cylinders:
1
hp/kW:
12/9
Vehicle weight (kg):
136
Seat height (mm):
792
Valve clearance (intake):
2-TAKTER
Valve clearance (exhaust):
2-TAKTER
Engine idle speed:
1400 ± 100 U/MIN
Carburettor air screw:
2,5 AUSDREHUNGEN
Tyre pressure (front):
2,0 BAR
Tyre pressure (rear):
2,25 BAR
Spark plug 1:
NGK BR9ECS
Electrode gap:
0,8 MM
Fork tube diam.:
35 MM TELEGABEL
Front/rear sprockets:
14/35 ZÄHNE
Chain/Final drive:
108 GLIEDER
Specifications*
Engine size:
125
Cylinders:
1
hp/kW:
12/9
Vehicle weight (kg):
136
Seat height (mm):
792
Valve clearance (intake):
2-TAKTER
Valve clearance (exhaust):
2-TAKTER
Engine idle speed:
1400 ± 100 U/MIN
Carburettor air screw:
2,5 AUSDREHUNGEN
Tyre pressure (front):
2,0 BAR
Tyre pressure (rear):
2,25 BAR
Spark plug 1:
NGK BR9ECS
Electrode gap:
0,8 MM
Fork tube diam.:
35 MM TELEGABEL
Front/rear sprockets:
14/35 ZÄHNE
Chain/Final drive:
108 GLIEDER

Capacities*

Fork oil per rod:
319 ML SAE 10W
Gear oil:
700 ML SAE 10W-40
Brake fluid:
DOT 4
Fuel:
13,0 LITER
Coolant:
1,1 LITER
Capacities*
Fork oil per rod:
319 ML SAE 10W
Gear oil:
700 ML SAE 10W-40
Brake fluid:
DOT 4
Fuel:
13,0 LITER
Coolant:
1,1 LITER

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

45 articles
4.6
4.3
2 Variants
5
2 Variants
5
4.2
3.9
4
2 Variants
5
2 Variants
4.5
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HONDA NSR 125 R (JC22/94)

Are you planning to maintain and service your own HONDA NSR 125 R (JC22/94)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HONDA NSR 125 R (JC22/94). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
