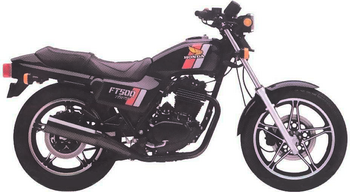

Spare parts and accessories for HONDA FT 500 PC07

1982 - 1985

Specifications*

Engine size:

498

Cylinders:

hp/kW:

35/26, 27/20

Vehicle weight (kg):

159

Valve clearance (intake):

KALT 0,05 MM

Valve clearance (exhaust):

KALT 0,10 MM

Engine idle speed:

1200 ± 100 U/MIN

Carburettor air screw:

2,5 AUSDREHUNGEN

Tyre pressure (front):

1,75 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK DR8EA

Spark plug 2:

NGK DR8EIX

Electrode gap:

0,7 MM

Fork tube diam.:

37 MM TELEGABEL

Front/rear sprockets:

15/40 ZÄHNE

Chain/Final drive:

100 GLIEDER

Specifications*

Engine size:

498

Cylinders:

hp/kW:

35/26, 27/20

Vehicle weight (kg):

159

Valve clearance (intake):

KALT 0,05 MM

Valve clearance (exhaust):

KALT 0,10 MM

Engine idle speed:

1200 ± 100 U/MIN

Carburettor air screw:

2,5 AUSDREHUNGEN

Tyre pressure (front):

1,75 BAR

Tyre pressure (rear):

2,0 BAR

Spark plug 1:

NGK DR8EA

Spark plug 2:

NGK DR8EIX

Electrode gap:

0,7 MM

Fork tube diam.:

37 MM TELEGABEL

Front/rear sprockets:

15/40 ZÄHNE

Chain/Final drive:

100 GLIEDER

Capacities*

Fork oil per rod:

330 ML SAE 10W

Engine oil w/o filter:

2,0 L SAE 10W-40

Engine oil with filter:

2,5 L MIN. API SE

Brake fluid:

DOT 4

Fuel:

13,5 LITER

Coolant:

LUFTGEKÜHLT

Capacities*

Fork oil per rod:

330 ML SAE 10W

Engine oil w/o filter:

2,0 L SAE 10W-40

Engine oil with filter:

2,5 L MIN. API SE

Brake fluid:

DOT 4

Fuel:

13,5 LITER

Coolant:

LUFTGEKÜHLT

Test reports and information

TOURENFAHRER 1/83

MOTORRAD 24/92

MOTORRAD NEWS 12/04

Find used value:

DAT GmbH

Test reports and information*

TOURENFAHRER 1/83

MOTORRAD 24/92

MOTORRAD NEWS 12/04

Find used value:

DAT GmbH

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

61 articles

Delo

Gel batteries, FA / sealed

€99.99¹ €97.46¹

Delo

Lithium-Ion Batteries

€129.99¹ €126.71¹

saito

Standard Battery

€29.99¹ €29.23¹

saito

Steering Head Bearing

€39.99¹ €38.98¹

TRW

Hollowscrew For Brake Pipes

€5.95¹ from €5.80¹

saito

Brake-Pads Organic With ABE

€19.99¹ €19.48¹

saito

Brake-Pads Sinter with ABE

€24.99¹ €24.36¹

-13%

TRW

Brakepads Organic

€33.95¹ €29.23¹

Fork Seal Set

€12.99¹ €12.66¹

TRW

Clutch Steel Plates

€44.95¹ €43.81¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HONDA FT 500 (PC07)

Are you planning to maintain and service your own HONDA FT 500 (PC07)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HONDA FT 500 (PC07). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
