HARLEY-DAVIDSON SPORTSTER 1200
XLH1200

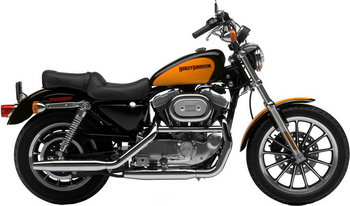

HARLEY-DAVIDSON SPORTSTER 1200
Year of manufacture:
1988 to 1999
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

1202

Cylinders:

2

hp/kW:

58/43, 34/25

Vehicle weight (kg):

245

Seat height (mm):

668

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

950-1050 U/MIN

Carburettor air screw:

1,5 AUSDREHUNGEN

Spark plug 1:

NGK DCPR7E

Spark plug 2:

NGK DCPR7EIX

Electrode gap:

1,0 MM

Fork tube diam.:

39 MM TELEGABEL

Chain/Final drive:

-90:KETTE/91-:BELT

Capacities*:

Fork oil per rod:

260 ML SAE 20W

Engine oil w/o filter:

2,6 L SAE 20W-50

Engine oil with filter:

2,8 LITER

Gear oil:

950ML GETR.+PRIMÄR

Primary oil:

950ML GETR.+PRIMÄR

Brake fluid:

DOT 5 SILIKON

Fuel:

8,5 L/AB 95:12,5 L

Coolant:

LUFTGEKÜHLT

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
