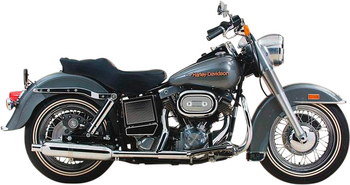

Spare parts and accessories for HARLEY-DAVIDSON ELECTRA-GLIDE 1340 (SHOVELHEAD)

1978 - 1984

Specifications*

Engine size:

1338

Cylinders:

hp/kW:

60/44, 64/47, 67/49

Vehicle weight (kg):

330

Seat height (mm):

840

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

700-900 U/MIN

Carburettor air screw:

1,5 AUSDREHUNGEN

Spark plug 1:

NGK BPR5ES-11

Spark plug 2:

NGK BPR5EIX-11

Electrode gap:

1,0 MM

Fork tube diam.:

41 MM VERKLEIDET

Front/rear sprockets:

DIVERSE

Chain/Final drive:

530 5/8 X 3/8

Specifications*

Engine size:

1338

Cylinders:

hp/kW:

60/44, 64/47, 67/49

Vehicle weight (kg):

330

Seat height (mm):

840

Valve clearance (intake):

HYDROSTÖSSEL

Valve clearance (exhaust):

HYDROSTÖSSEL

Engine idle speed:

700-900 U/MIN

Carburettor air screw:

1,5 AUSDREHUNGEN

Spark plug 1:

NGK BPR5ES-11

Spark plug 2:

NGK BPR5EIX-11

Electrode gap:

1,0 MM

Fork tube diam.:

41 MM VERKLEIDET

Front/rear sprockets:

DIVERSE

Chain/Final drive:

530 5/8 X 3/8

Capacities*

Fork oil per rod:

230 ML SAE 30W

Engine oil w/o filter:

3,5 L SAE 50W

Engine oil with filter:

3,8 L SAE 50W

Gear oil:

700 ML SAE 80W-90

Brake fluid:

-'80:DOT4/80-:DOT5

Fuel:

18,9 LITER

Coolant:

LUFTGEKÜHLT

Capacities*

Fork oil per rod:

230 ML SAE 30W

Engine oil w/o filter:

3,5 L SAE 50W

Engine oil with filter:

3,8 L SAE 50W

Gear oil:

700 ML SAE 80W-90

Brake fluid:

-'80:DOT4/80-:DOT5

Fuel:

18,9 LITER

Coolant:

LUFTGEKÜHLT

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

66 articles

TRW

Brake Fluid

€19.99¹

(1 Liter = €19.99¹)

4.5

Castrol

Brake fluid

€14.99¹

(1 Liter = €14.99¹)

4.2

PROCYCLE

Brake Fluid

€9.99¹

(1 Liter = €9.99¹)

3.9

TRW

Brake Fluid

€4.99¹

(100 ml = €2.00¹)

2 Variants

Motul

Brake Fluid

from €7.99¹

(1 Liter = €15.98¹)

Motul

RBF 660 Racing Brake Fluid

€14.99¹

(1 Liter = €29.98¹)

NEW!

Motul

Brake Fluid DOT 4 LV

€6.99¹

(1 Liter = €13.98¹)

NEW!

Motul

RBF 700 FL Racing Brake Fluid

€19.99¹

(1 Liter = €39.98¹)

4.9

ThoMar

Multi Dry Dehumidifier

€12.99¹

4.3

Double Filament Bulb

€1.99¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for HARLEY-DAVIDSON ELECTRA-GLIDE 1340 (SHOVELHEAD) (FLH-80)

Are you planning to maintain and service your own HARLEY-DAVIDSON ELECTRA-GLIDE 1340 (SHOVELHEAD) (FLH-80)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your HARLEY-DAVIDSON ELECTRA-GLIDE 1340 (SHOVELHEAD) (FLH-80). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
