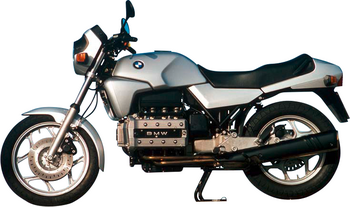

BMW K 100
K100(K589)

BMW K 100
Year of manufacture:
1983 to 1990
VIN:
-
All products for my bike!

One click is all it takes.

Save your vehicles here to view the accessories and wearing parts Louis carries for your particular model, as well as key data on settings, capacities and so on. More...

Engine size:

987

Cylinders:

4

hp/kW:

90/66

Vehicle weight (kg):

239

Seat height (mm):

810

Valve clearance (intake):

KALT 0,15-0,20 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

950 ± 50 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,25 (2,5) BAR

Tyre pressure (rear):

2,5 (2,8) BAR

Spark plug 1:

NGK D7EA

Spark plug 2:

NGK DR7EIX

Electrode gap:

0,6-0,7 MM

Fork tube diam.:

41,1 MM TELEGABEL

Chain/Final drive:

KARDAN

Capacities*:

Fork oil per rod:

330 ML SAE 5W

Engine oil w/o filter:

3,5 L SAE 20W-50

Engine oil with filter:

3,75 L MIN. API SF

Gear oil:

850 ML SAE 90 GL-5

Brake fluid:

DOT 4

Final drive oil:

260 ML SAE 90 GL-5

Fuel:

22,0 LITER

Coolant:

3,2 LITER

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided.

Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form!
