Individual DID ZVM-X chains, S&S type
with rivet master link

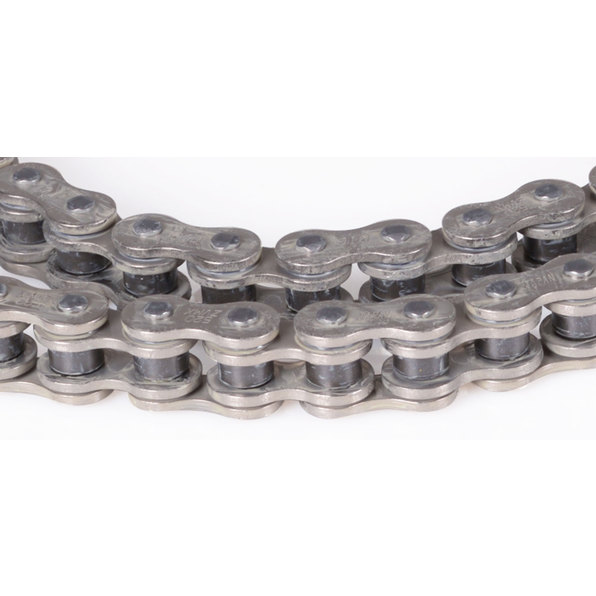

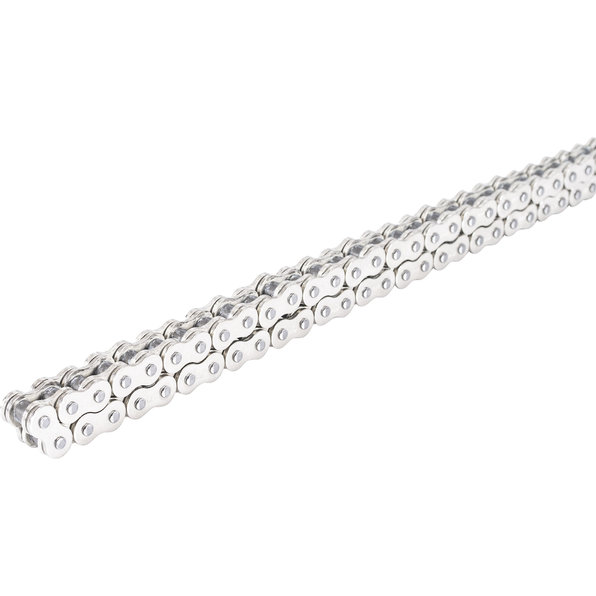

Motorcycle drive chains are all the same. Definitely not! Take a look at the D.I.D. ZVM-X Type S&S chromed chain, for example. Now this one really is different. This gleaming chain will withstand the toughest conditions, including wind and weather, serious dirt and the finest dust. This D.I.D. ZVM Type S&S is an additionally reinforced X-Ring chain with permanent grease lubrication. It is a very high quality and built to last. The high-grade steel is virtually rustproof!

This open chain is supplied with the appropriate hollow rivet master link. It comes in sizes 520, 525 and 530, and in various lengths.

• The best D.I.D chain available today in terms of rigidity** (10 % higher than its predecessor, the ZVM2),
• with the highest wear resistance index to date.
• D.I.D X-ring seals*** halve the power loss due to friction compared to an O-ring chain

• Chrome colour due to galvanising process S&S - (chrome-coloured outer and inner plate)

Tensile strengths:

• 520 ZVM-X: 3970 kg
• 525 ZVM-X: 4720 kg
• 530 ZVM-X: 4720 kg

Wear resistance index:

• 520 ZVM-X: 3500
• 525 ZVM-X: 4000
• 530 ZVM-X: 4000

Reference: Standard chain (= 100)

Good to know:
** The rigidity of a chain means its ability to resist deformation and stretching. Higher rigidity means smoother handling, less power loss and faster reaction of the chain.

*** The specially shaped sealing rings significantly alter the friction area of the side plates. At the same time, doubling the number of sealing points from 2 to 4 safeguards far more effectively against lubricant loss, and also provides optimum protection against dirt.
